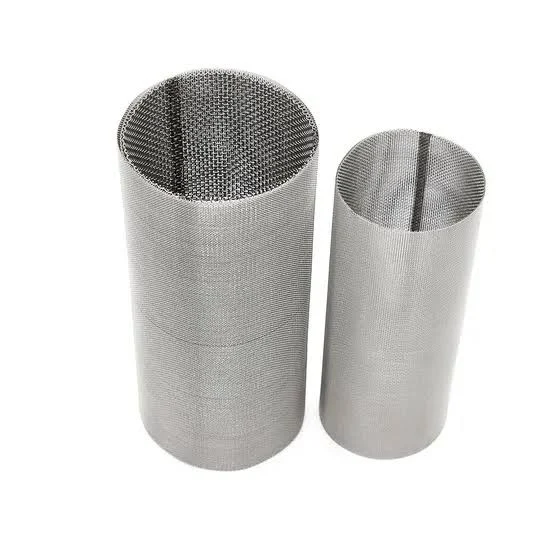

Multi Layer Spot Filter

Multi Layer Spot Filter

Spot Welded Filters are engineered for absolute rigidity and reliability. Resistance welding at precise points prevents layer delamination, ensuring structural integrity even under immense back-pressures in industrial filtration.

KEY ADVANTAGES

  • ■ Foolproof Installation: Works correctly regardless of orientation.
  • ■ Uniform Flow: Weld points positioned to avoid polymer flow disturbance.
  • ■ High Strength: Multiple weld points prevent delamination and withstand high pressure.
  • ■ Precision Manufacturing: Ensures consistent filtration performance.
  • ■ Customizable: Weld pattern optimized for specific applications.

TECHNICAL SPECIFICATIONS

Material GradeS S 304 & S S 202
ConstructionSpot welded multi-layer
Weld TypeResistance welding at precise points
Layer Count2-5 layers typical
Mesh ConfigurationFine center + coarse support
Mesh Range10-500 mesh
Diameter Range80mm - 600mm
Thickness0.8mm - 3.0mm (compressed)

APPLICATIONS

  • High Precision Extrusion: Masterbatch, optical film
  • Critical Filtration: Medical grade polymers
  • High Pressure Systems: Large diameter extruders
  • Quality Critical Production: Packaging film, BOPET
